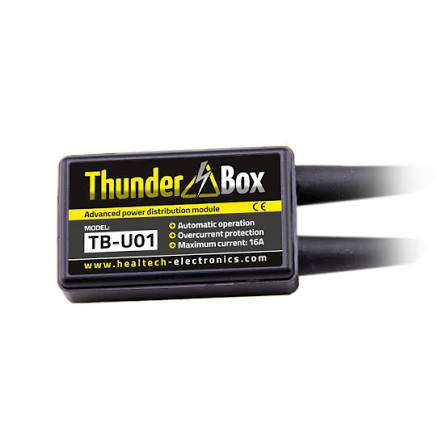

HEALTECH TB-U01 THUNDER BOX ADVANCED POWER DISTRIBTION MODULE

E-Shop Motorcycle Improvement HEALTECH TB-U01 THUNDER BOX ADVANCED POWER DISTRIBTION MODULE

/docs/Images/Products/ad12cadd-32d4-479f-ae59-63fc3194f8ad.jpg

Motorcycle Improvement

HEALTECH TB-U01 THUNDER BOX ADVANCED POWER DISTRIBTION MODULE

- 5%

86.00€ 81.70€

Color :

Size:

Quantity

Code:

TB-U01

MPN:

TB-U01

Product Category:

Motorcycle Improvement

Product Collection:

Brand:

HEALTECH

Height:

Width:

The ThunderBox offers a simple, safe, and reliable solution for connecting aftermarket electronic accessories, such as additional running lights, heated grips, GPS devices, phone chargers, additional gauges, and any other device that requires a power supply. It functions as a smart power distributor between the battery and the accessories, ensuring a proper and safe power supply.

Thanks to the included quick-connect terminals, installation is quick and easy, requiring no special tools or technical knowledge. At the same time, the ThunderBox helps extend the battery's lifespan while protecting the motorcycle's electrical system from overloads, short circuits, and other electrical faults.

Dimensions: 5.9 x 3.5 x 1.7 cm
Weight: 75 g (with wiring)

Maximum switching current: 16 A

Compatible with ALL vehicles that use a 12V battery system (all battery types and capacities are supported), including all motorcycles, cars, ATVs/UTVs, kit cars, and even lawn mower trucks.

FEATURES

Amazing technology.

The TB continuously monitors the battery voltage, the engine status (on/off), and the outputs, and then automatically turns the loads on or off. The TB isolates or cuts off power to the components until the engine starts and is running smoothly, ensuring that 100% of the battery's power is always available for starting. This is a fully automated process, resulting in trouble-free starts and extended battery life.

Multiple operating modes.

The ThunderBox can operate in three different modes. Depending on how the WHITE control wire is connected, you can select the following operating modes:

Automatic mode: When the engine starts and runs smoothly, the TB activates the power outputs. When the engine stops, after a few seconds, the TB deactivates the outputs.
Ignition-controlled mode: The TB will turn the outputs on/off (with a delay of a few seconds) depending on the position of the ignition switch.
Permanent off mode: The TB will not activate the outputs even when a battery charger is connected. This is useful during winter storage, as a trickle charger will not activate the TB.

Quick and easy to use.

Connect the TB directly to the battery terminals and choose between fully automatic operation or ignition-key-controlled operation. Connect auxiliary equipment quickly, easily, and safely to the provided tool-free terminals.

Two versions.

Available in two versions: 16A (TB-U01) and 2x16A (TB-U02)

Advanced technology.

Multiple operating modes (automatic and ignition-key controlled). Continuous electronic protection (overload, short circuit). Fuse-free design.

Small but durable.

The TB has no moving parts, relays, or fuses. Inside the durable plastic housing, the circuits are encapsulated in epoxy resin, making it completely oil- and water-resistant, as well as shock- and vibration-resistant.

Wide compatibility.

Compatible with ALL vehicles that use a 12V battery system (all battery types and capacities are supported), including all motorcycles, cars, ATVs/UTVs, kit cars, and even lawn mower trucks.

USB charger.

With the optional USB chargers, power to your mobile devices will be automatically turned on/off and will also be protected. You can connect multiple USB chargers to a single TB unit

TB-U01 (maximum switching current: 16A).
TB-U02 (maximum switching current: 2x16A).
TB-USB1 (optional USB charger, output: 5V/2A).
